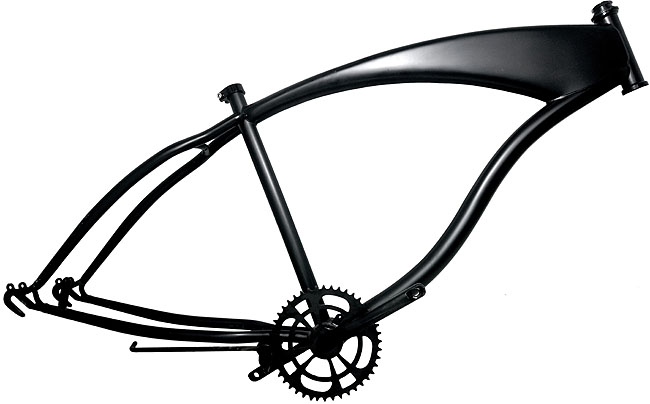

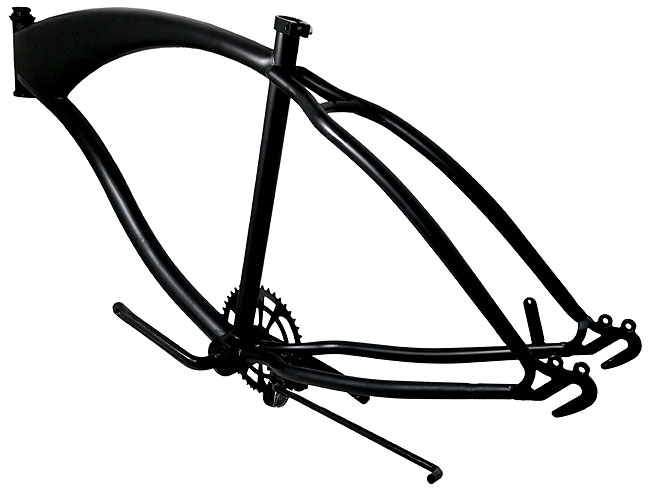

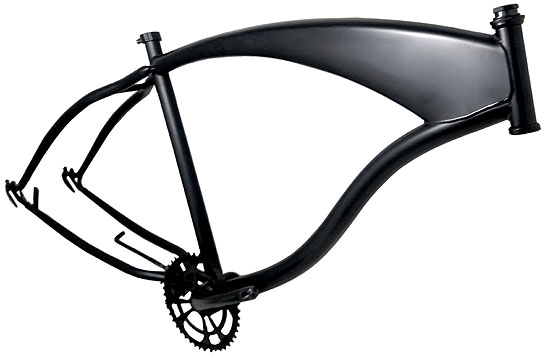

An extended frame set for building an individual
Cruiser Bike
Custom Tank-Cruiser KIT!
Frame 18 "
for wheels 26x3.0"
On the offered frame, depending on the size of the wheels and handlebar used, you can build a bicycle
the most convenient for people with a height of 160-185 cm
The set includes:
Frame: Hi-Ten steel - size 18 "(45.5 cm)
head tube 1 "12 cm
black matte color
Headset: threaded black
Crank: OPC 165 mm with 44T sprocket black
Kickstand: black steel
Seatpost clamp: black
Seatpost: black steel
Weight of the set: 6 kg
Recommended wheel size up to 26x3.0 " on 55 mm wide rim

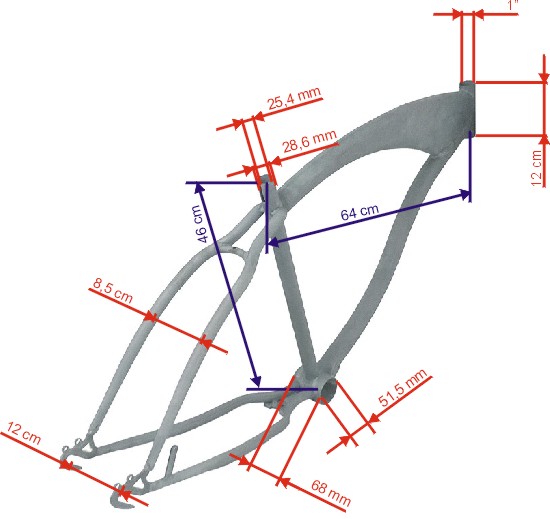

Use a fork with headtube 1 " (25.4) and a length of approx. 155 mm - with a longer one, check the thread length and use spacers available in our offer or cut and use AHEAD headset
mounting width of the rear hub 11,5 cm
coaster / torpedo brake - fixing with a clamp
distance from the seatclamp to the BB axis of 45.5 cm
distance from the axis of the seatclamp to the head tube axis 64 cm
