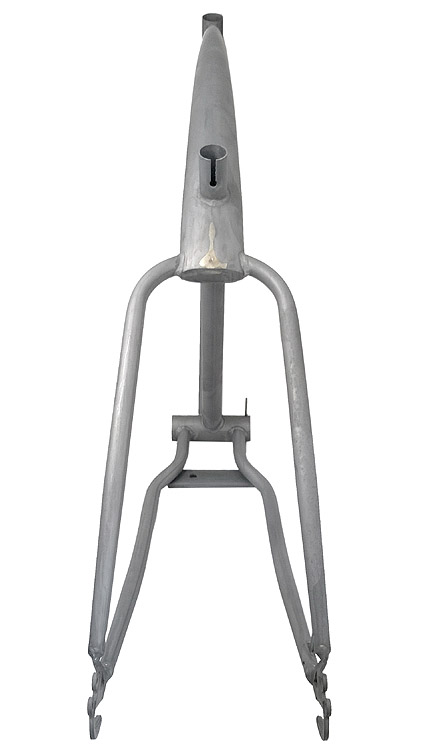

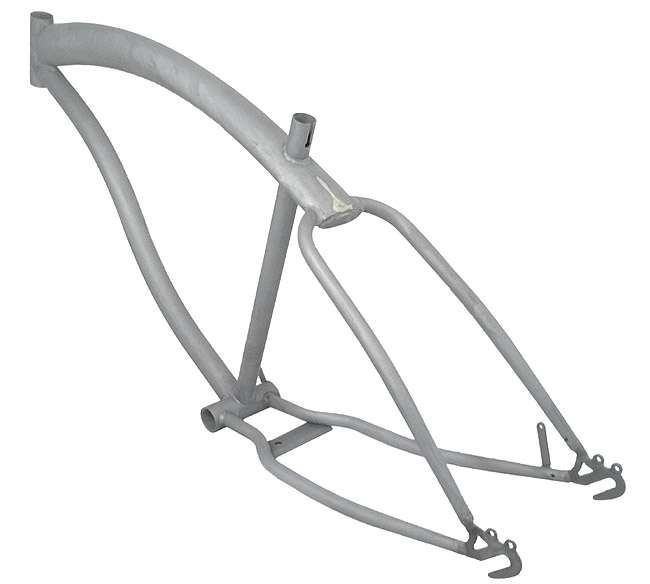

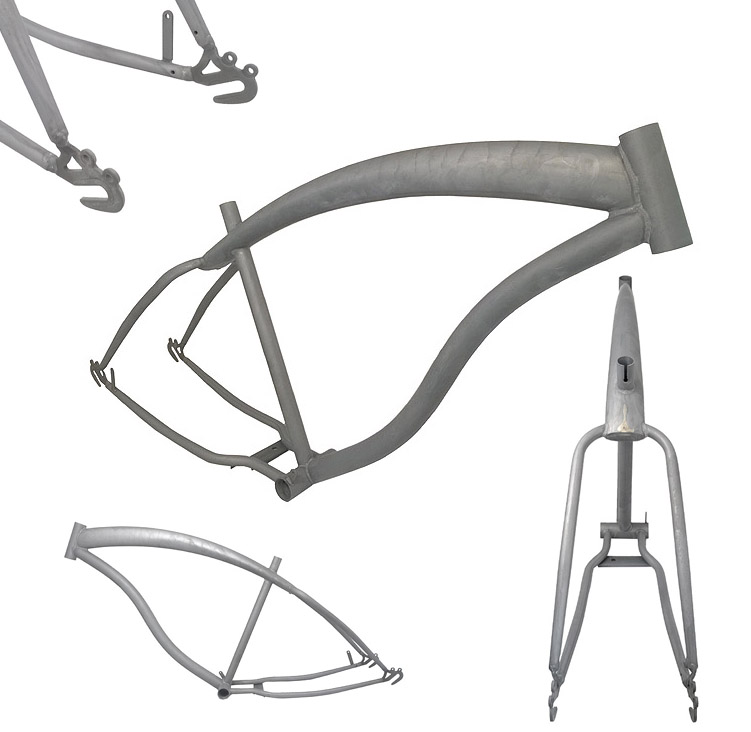

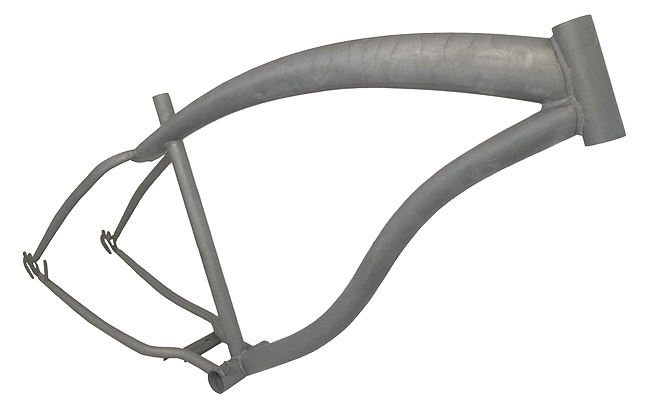

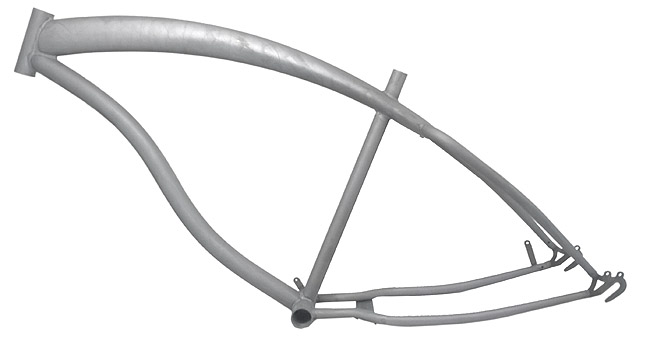

XL FATcruiser bicycle Frame
RAW STEEL acid and phosphate
ready to paint
coaster brake version
( in the "fatbike" section, a version with a derailleur and discbrake mount is available)
XL Cruiser
Frame to build larger than classic BEACHCRUISER
or an interesting FATBIKE design.

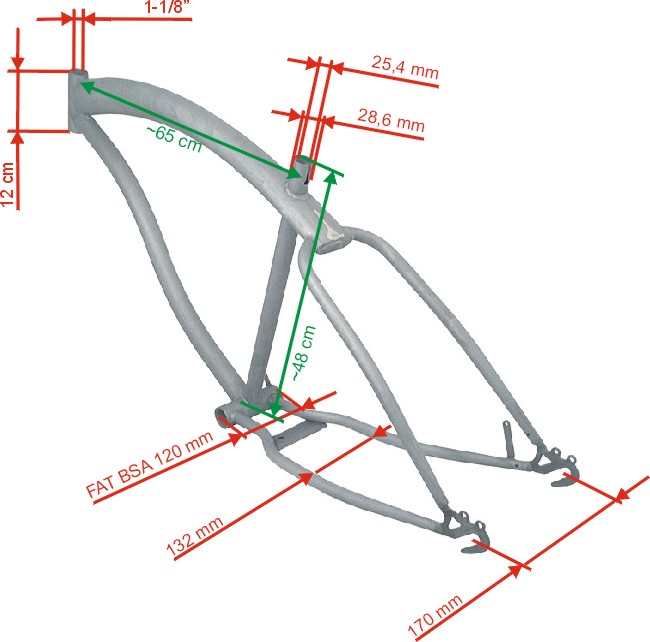

Frame size : 19" ( 48 cm ) M/L
Headset 1-1/8" AHEAD

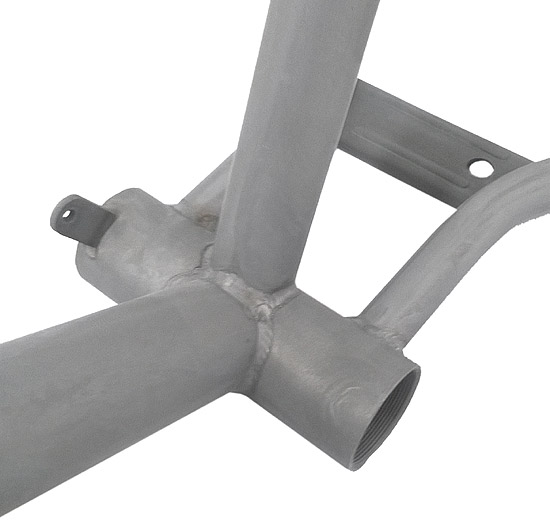

BB Fat-BSA 120 mm wide

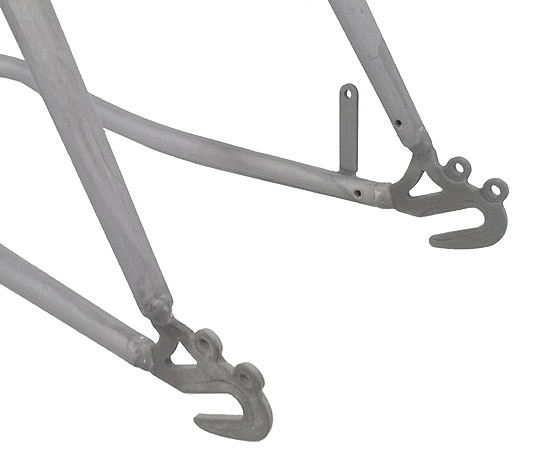

rear fork OLD 170 mm
Using this frame You can build a FATBIKE or XL FATcruiser most comfortable for people with a height of 170-185 cm
recommended tire size 26x4.0 on the rim 80 mm wide
or 26x3.0-3.5 on the rim 80 / 100mm
Steel with phosphate cover , do not sandblast if not needed

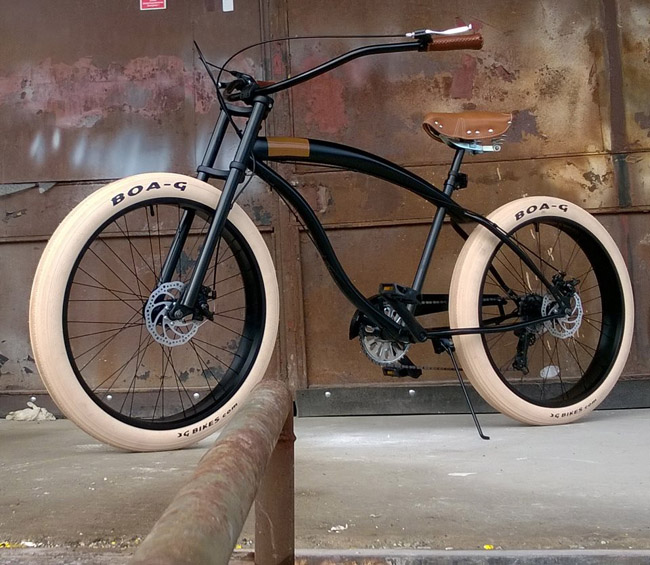

Sample bikes built using this type of frame:
POSSIBLE USE OF WHEELS WITH RIM 80/100 mm WIDE
AND TIRE UP TO 26x4.0
