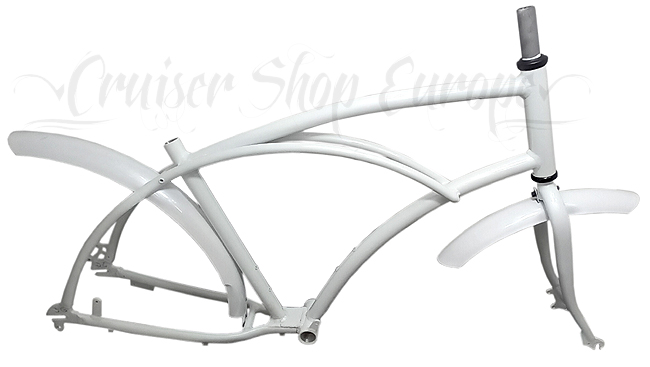

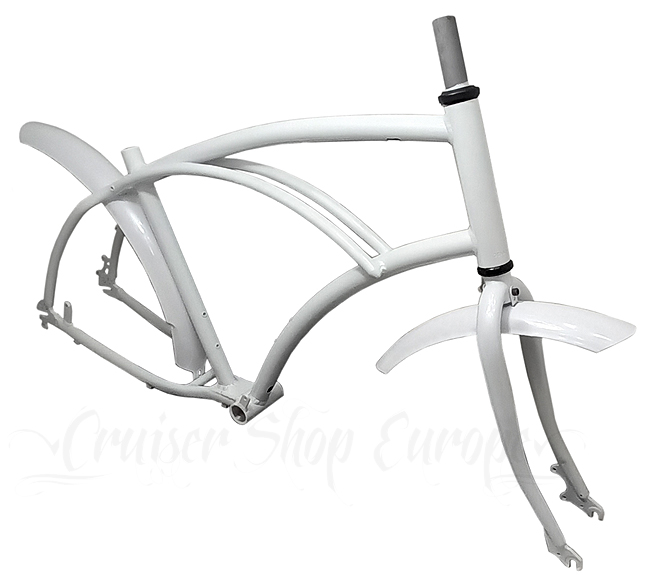

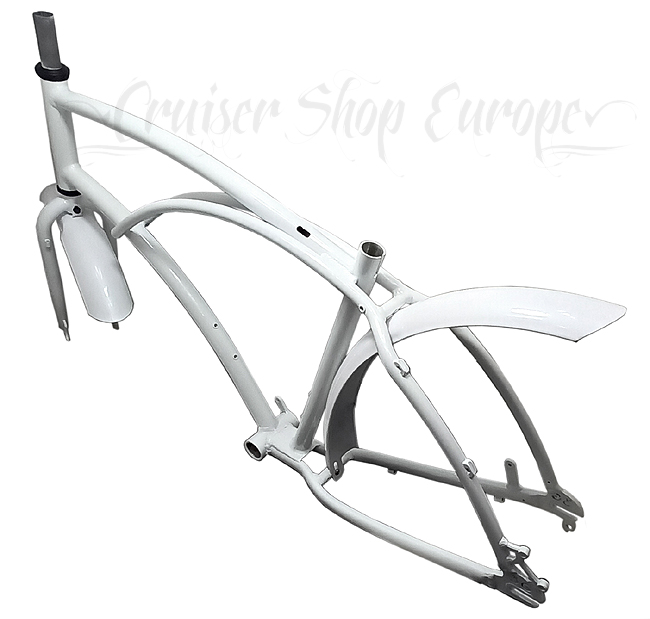

3G XL BeachCruiser bicycle frame - size 20 inch - alu WHITE - set incl. fork + fenders CC

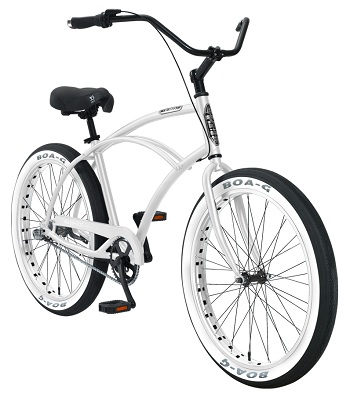

Model: 3G Newport

Pearl white gloss painted*

Material: Aluminium

Possible wheels 26" with rims up to 80 mm wide + tire up to 26 x 3,45

Bottom bracket: oversized FATBIKE-BSA 100 mm wide shell

Head tube 200 mm for 1 1/8" forks

For Seat post of 27,2 mm

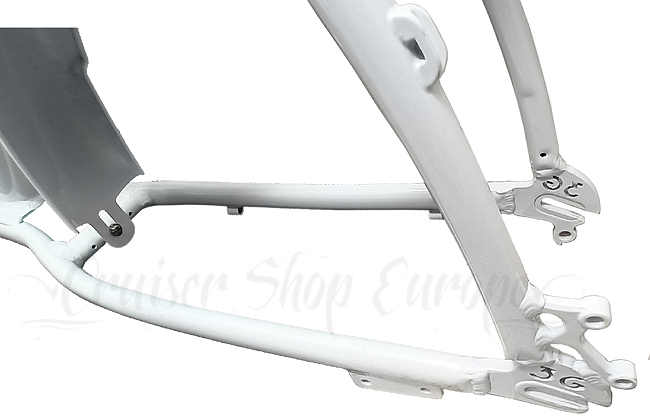

Rear contains derailleur holder + IS disc brake mount

Width of rear hub / dropouts / chain stays: OLD 135 mm

Dimensions:

seat -> head tube: ~ 645 mm / 25,4 inches

seat -> bottom bracket: ~ 505 mm / 20 inches

Frame weight: about 2,7 kg

Chainguard mount points distance 455 mm

The frame has holes for inserting the brake cable inside, the set includes 2 plastic hole covers

BOTTOM AXLE CLEARLY FORWARD FROM THE SADDLE POSITION

ENABLES YOU EASY PLACING YOUR FEET ON THE GROUND

WITH A COMFORTABLE RIDING POSITION AND A STRAIGHT KNEE WHILE PEDALING

Fork:

Model: Newport

Disc brake mount

Steerer diameter: 1 1/8"

Steerer length: 305 mm / 12"

Material: Steel

Pearl white gloss painted*

For OLD 100 mm front hubs

Fenderset front and rear

Pearl white gloss painted*

* CAUTION! Elements painted and packed at the factory. Due to the conditions of transport and storage, they may have slight damage, scratches, blemishes that are not considered a defect of the product sold. Visible when examining the bike closely. In fact invisible when viewing the bike from a normal distance of 1-1.5 m
