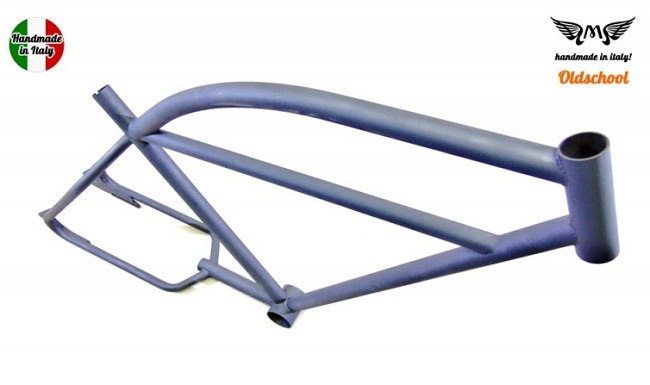

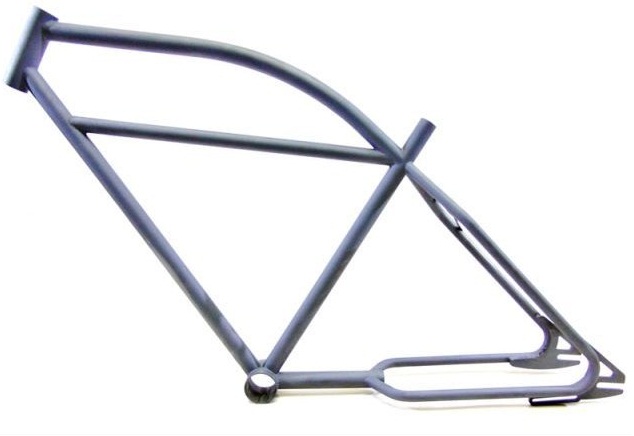

Custom Cruiser Frame
MERCURIUS
OLD SCHOOL
Handcrafted made in Italy
Perfect for present-day projects on fat wheels
and stylized as a retro, vintage, classic bike
Frame material: Cro-Mo steel
Head 1-1/8 - 130mm
Bottom Bracket BMX 51 mm ( USA BB )
Seatpost 25,4mm
Rear fork - width between dropouts - connection with hub OLD 135 mm
Rear fork width in tire point 14 cm
Max. possible wheel radius ca. 35 cm
Possible installation of wheels up to:
26x3,5 tire / max 100 mm wide rim
weight 3,5 kg

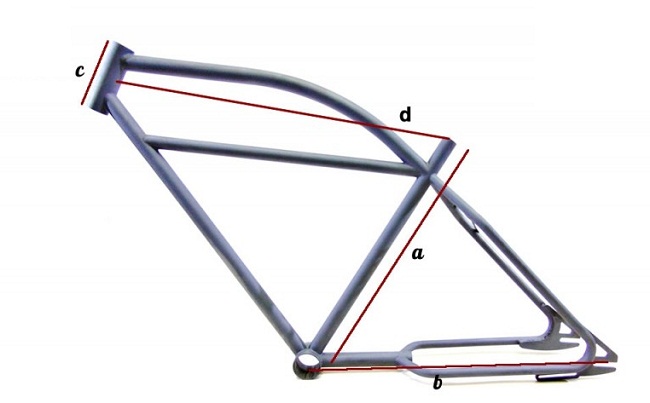

A = 52 cm
B = 57 cm
C = 13 cm
D = 63 cm

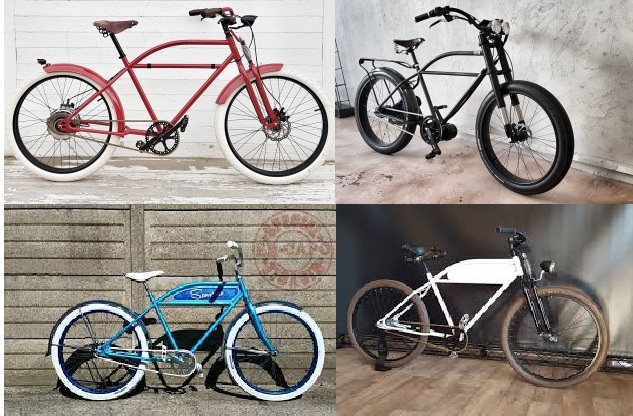

Examples of bikes built using the described frame
