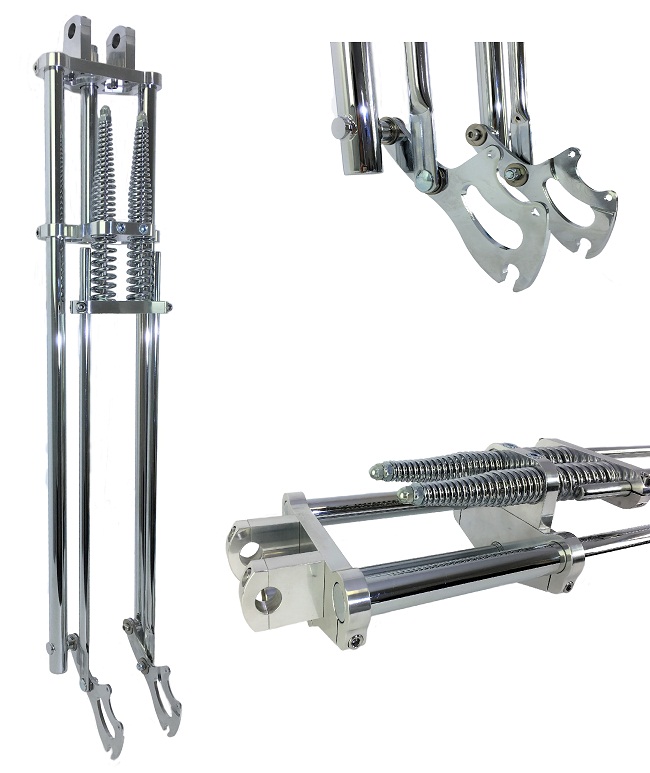

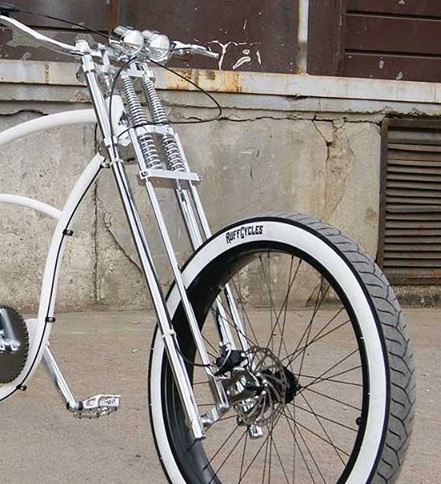

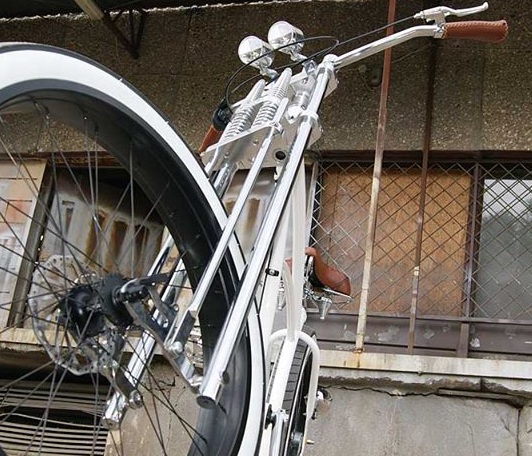

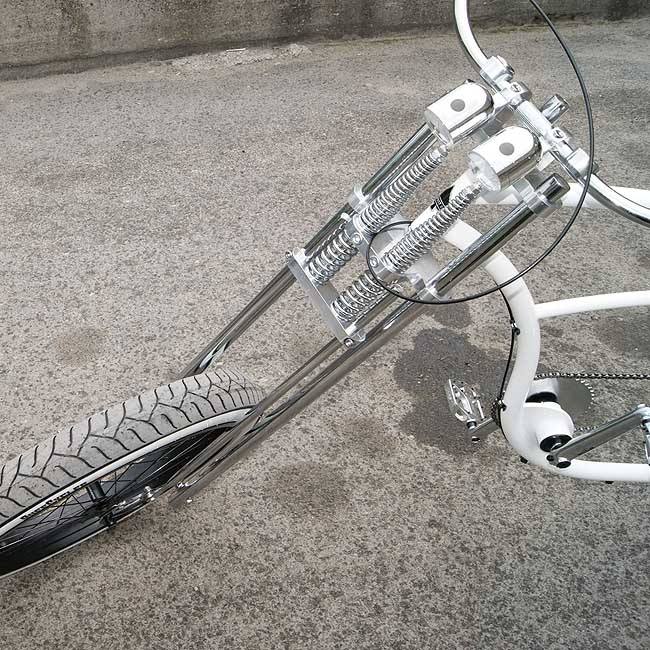

For chopper , cruiser , custom bicycles equipped with 20-28 " wheels up to 3" wide
270 mm steerer length
Handlebar mount 22.2 mm
Bridges are screwed on and fork tubes and shaft can be cutted
Diameter of thicker fork tube: 29 mm
distance between springer shafts: 105 mm
Distance between axle and handlebar attachments: 100 cm
distance between fork crown and axle dropout ca. 58 cm
For hub width of: 100 mm
Weight: ca. 6,5 kg
The steerer tube and fork side tubes can be shortened
The length of the fork is adjustable in the range of about 10 cm
you can also make a shorter by cutting the fork elements - but this requires high precision cutting and should be retrofitted on your own right plugs to it.
ATTENTION! INSTALLATION ONLY FOR THE PATIENT. BEFORE ORDER, PLEASE THINK ABOUT YOU ARE THE RIGHT PERSON FOR THIS
