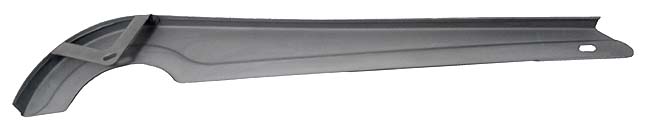

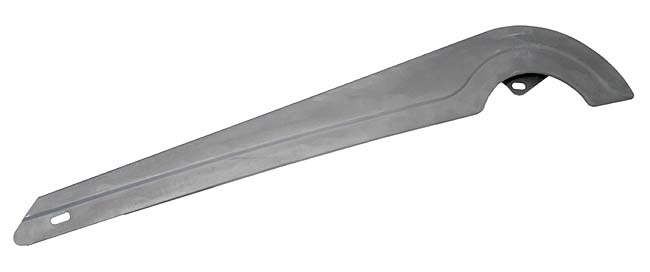

Chainguard
for Beach-CRUISERs
raw steel
UNPAINTED
spacing of mounting holes 45 cm +/- 0,5 cm
overall length approx. 58,5 cm
overall height approx. 12,5 cm
width approx. 2 cm
the distance of the upper edge from the point of the front mount hole approx. 6 cm
the distance of the front edge from the point of the front mount hole approx. 9 cm
fits to 44T chainrings ( diameter of the sprocket about 18 cm )
possible to use with smaller chainrings too ( 40-42T ) or a little bigger 46T ( may require moving the mount holes)
